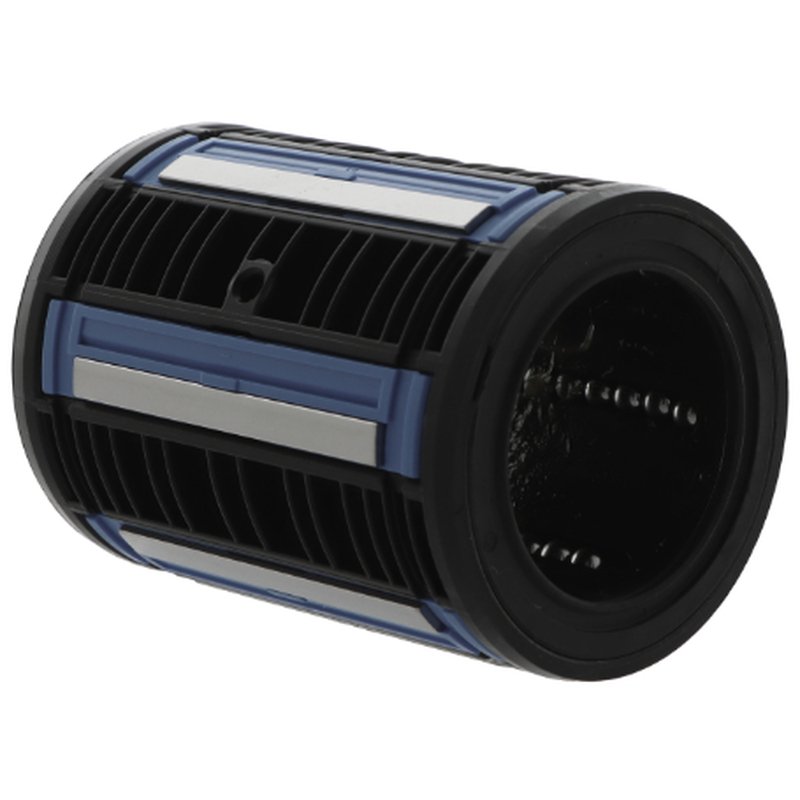

Linear ball bearings LBCR20 D-2LS/HV6 20x32x45mm Ewellix

Reference AP10171911 EAN: 7333314229878
Linear ball bearings LBCR20 D-2LS/HV6
Data sheet
Material
Steel (with anti-corrosion protection), plastic
Seal
Sealed on all sides
Temperature range
-30 to +80 °C
Version
Closed version
Width
45 mm
Angle compensation
Without misalignment compensation
Series

Standard series
Inner dimension
20 mm
Outer dimension
32 mm
Weight
0,065 kg
€63.90
[€63.90 Stück]
Tax included Shipping excluded
In stock

Description

The Linear Ball Bearing LBCR20 D-2LS/HV6 from Ewellix impresses with a robust construction and precise technical data. With an inner diameter of 20 mm, an outer diameter of 32 mm, and a width of 45 mm, it is ideal for a variety of applications. The bearing weighs only 0.065 kg and belongs to Ewellix's standard series.

The temperature range of -30 to +80 °C makes it suitable for a versatile range of applications. The closed design provides additional protection, and the all-around sealing keeps dirt and moisture out. The bearing is made of corrosion-resistant steel and plastic, providing high durability.

With the Linear Ball Bearing LBCR20 D-2LS/HV6 from Ewellix, you receive a reliable and precise component for your applications. Ideal for applications where angular compensation without alignment error compensation is required.
